Panel 20®

2PC Moldings

These budget-friendly systems offer quick lead times, on-site fabrication, as well as a number of different core options to suit your specific application.

Features & Benefits

  • 1/8″ Phenolic Resin Panel
  • 7/16″ System Depth
  • Barrier Wall
  • Raised Profile Moldings
  • Non-Progressive Sequence

FINISHES

Available in a variety of colors and finishes:

  • Smooth Kynar 500
  • Smooth Anodized

View Color Chart >

Economical Durability in an Easy-To-Install System

Panel Thickness

A durable, .075″ thermoset
phenolic resin core provides an ultra-smooth substrate.

System Depth

The system measures 7/16″
from the face of the substrate
to the face of the moldings.

Panel Weight

This panel has a nominal weight of approximately 1.28 lbs per square foot.

Barrier Wall

This system is designed to be completely sealed to keep all
moisture away from the structure.

Impact Resistant

The dense, hard phenolic core
offers extra protection against
dents and dings.

Flat Moldings

Two-piece, raised-profile aluminum moldings create an accent shadow line around the perimeter.

Ready to Choose the Ultimate in Performance and Get Everything You Need?

Panel 20® – 2PC Molding

PANEL

Composition

  • 024″ Smooth Aluminum
  • .075″ Thermoset Phenolic Resin
  • .024″ Primed Aluminum

Batten Moldings

Standard Sizes

  • 8″ x 96″ (121.9cm x 243.8cm)
  • 48″ x 120″ (121.9cm x 304.8cm)
  • 48″ x 144″ (121.9cm x 365.8cm)
  • 60″ x 96″ (152.4cm x 243.8cm)
  • 60″ x 120″ (152.4cm x 304.8cm)
  • 60″ x 144″ (152.4cm x 365.8cm)

Reveal Moldings

System Moldings

  • C20-401 Horz/Vert
  • C20-402 Horz/Vert (Chamfer)
  • C20-403 Perimeter J
  • C20-404 Inside Corner
  • C20-405 Outside Corner
  • C20-406 Horz/Vert (Reveal)
  • C20-407 Perim J (Reveal)

DATASHEETS & DOWNLOADS

Product Data Sheet
(.pdf)

Guide Spec
(.docx)

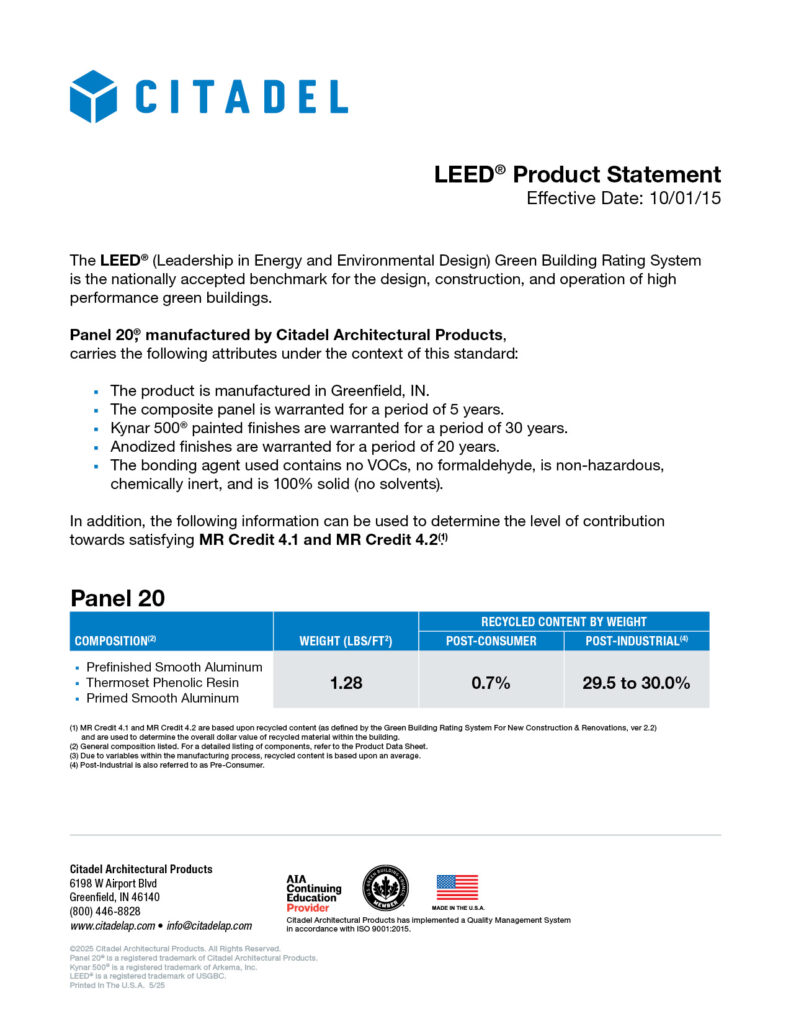

LEED Information
(.pdf)

CAD Drawings
(.zip)

CAD Drawings
(.pdf)

Sample Warranty
(.pdf)
