Panel 15®

1pc Moldings

Panel Thickness

A durable, 5/16″ thick exterior grade plywood provides an excellent substrate for the panel.

System Depth

The system measures 1/2″ from the face of the substrate to the face of the moldings.

Panel Weight

This panel has a nominal weight of approximately 1.01 lbs per square foot.

Barrier Wall

This system is designed to be completely sealed to keep all
moisture away from the  structure.

Impact Resistant

Along with a textured skin, the wood core provides excellent protection from dents and dings.

Flat Moldings

One-piece, low-profile aluminum moldings capture the panel edge and fit close to the face.

Economical Durability in an Easy-To-Install System


Batten Moldings

Reveal Moldings


  • .010″ Textured Aluminum
  • 5/16″ Douglas Fir Plywood
  • .008″ Foil Scrim Backer

Standard Sizes

  • 48″ x 96″ (121.9cm x 243.8cm)
  • 48″ x 120″ (121.9cm x 304.8cm)
  • 48″ x 144″ (121.9cm x 365.8cm)
  • 60″ x 96″ (152.4cm x 243.8cm)
  • 60″ x 120″ (152.4cm x 304.8cm)

System Moldings

  • PA-8X Outside Corner
  • PA-9X Inside Corner
  • PA-12X Horz/Vert
  • PA-15BX Perimeter J

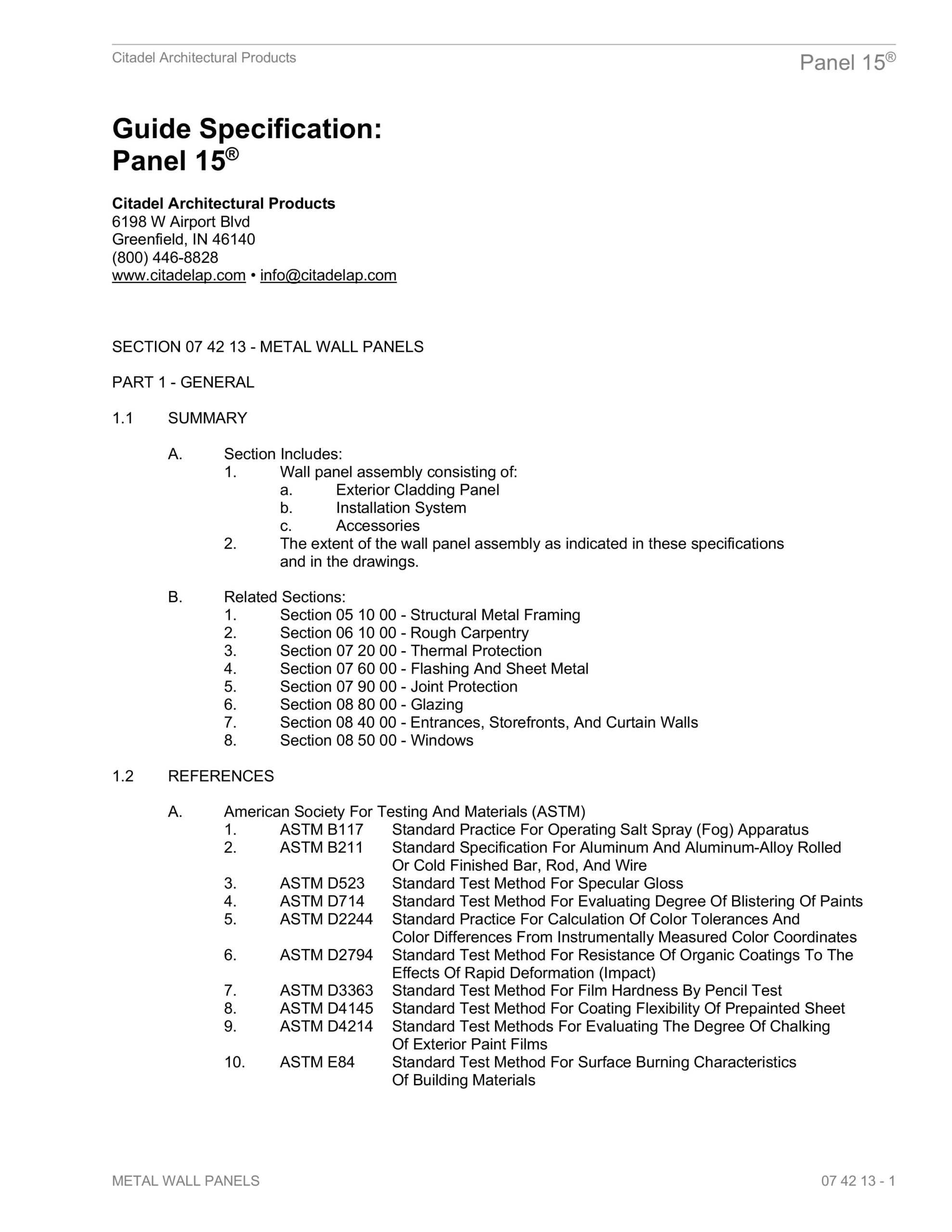

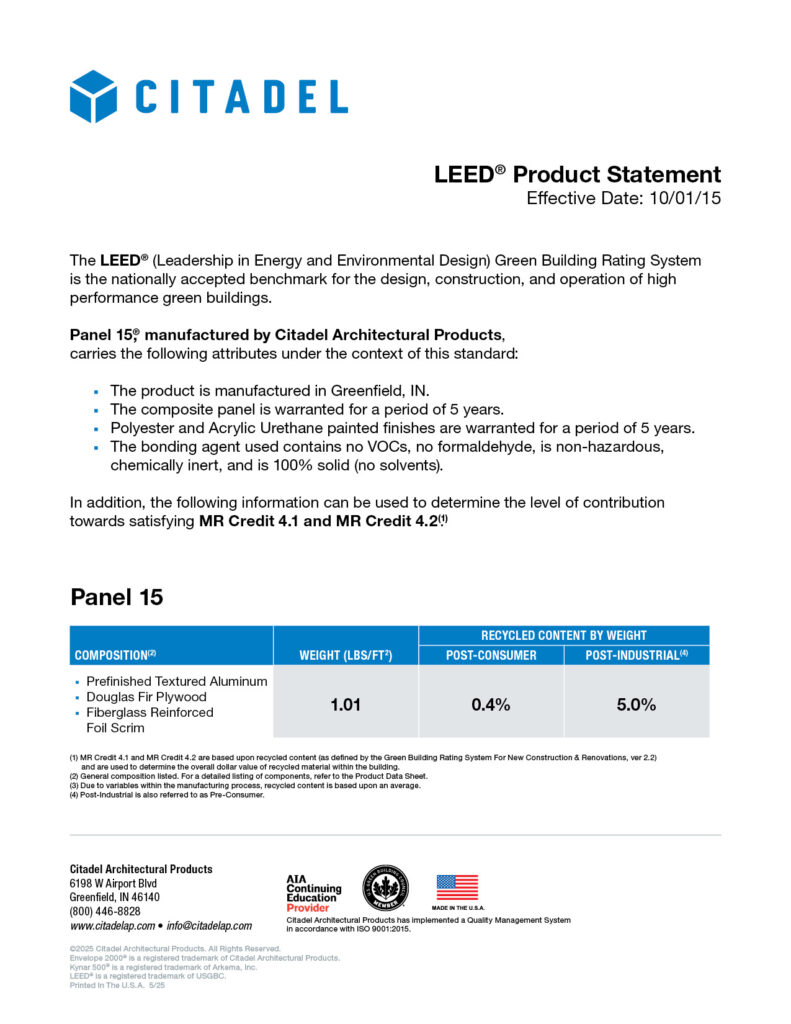

Related Downloads
